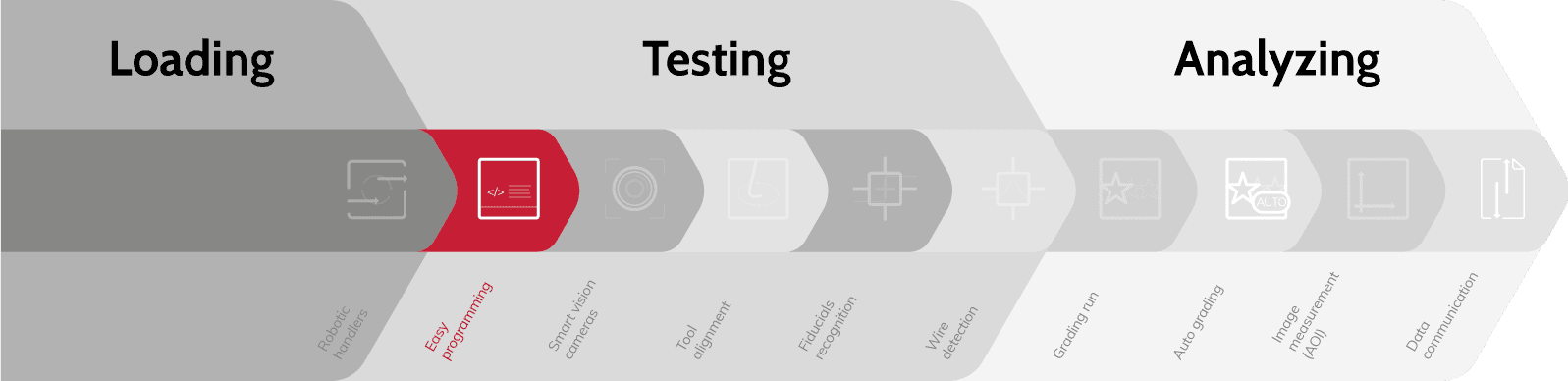

Easy programming

Automatic testing

It’s that easy!

Our open software comes with 2 levels of easy programming to make it approachable for operators and engineers.

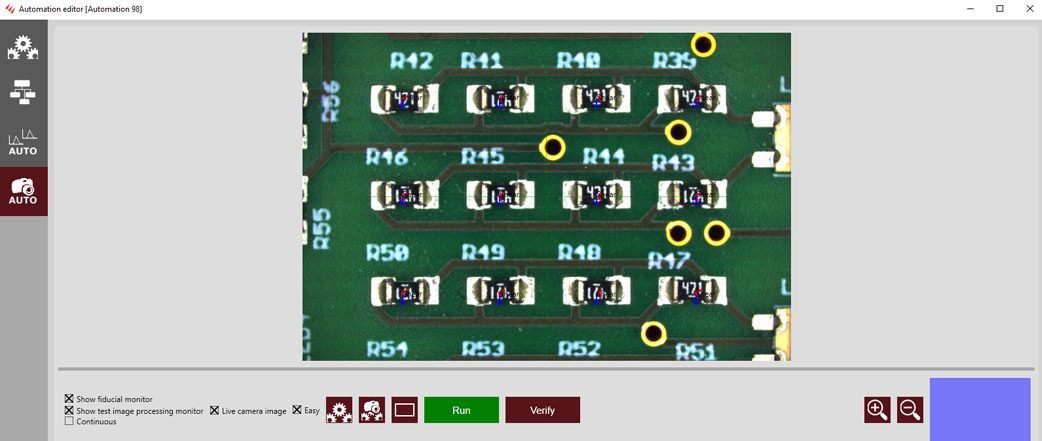

Easily program test sequences using a live camera that looks straight down on the application to teach automation process steps, positions, and commands for perfect alignment and accurate testing.

General: moves, sensor selections, surface detections, waits, comments
Tests: methods, positions, hook corrections, lower limit
Marks: patterns/fiducials (global and local), use matrices, set offsets
Control/output: tweezers, vacuum valves, cleaners, output form definitions
Camera/light: photo/video cameras, light sources

Save time and start programming from the Easy Mode. Optionally switch to the Expert Mode and add more complex features for optimal customization.

Matrix selection

Very common with lead frames. Matrix programming allows you to test a variety of position types, including repeating positions, like:

Rows and columns
Specific or randomized locations
Predefined test location from remote protocols driven by SECS/GEM functionality, and more!

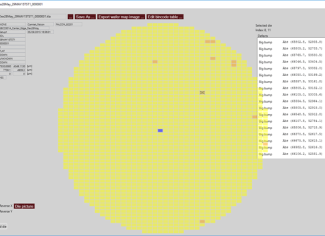

Substrate wafer map import

Easily import and export multiple file formats for wafer maps such as KLARF, (S)INF, G85, and others for full traceability. Defects or test positions are shown in an overview and are directly accessible for testing or analysis.

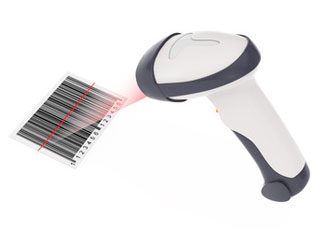

Barcode reader

Quickly start a test sequence using a 2D barcode reader. An automation, test method, or form starts automatically after scanning the QR code or barcode.

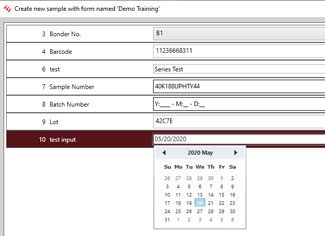

Forms

For better traceability, you can use custom forms to store additional data along with your measurements.
